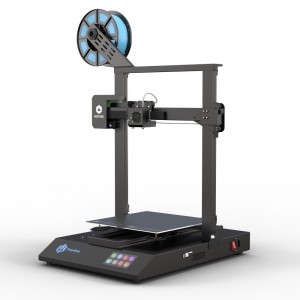

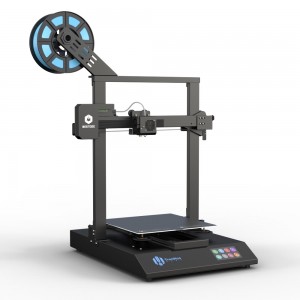

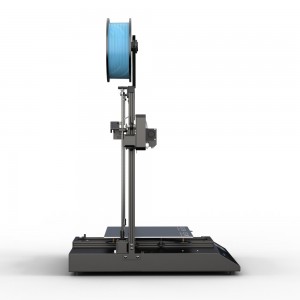

BestGee T300S Pro FDM/FFF 3D Printer

Short Description:

Features:

1. [Print Bigger Volume]: 300*300*400m big print volume for more big model. More of your big ideas will not be dreams. Double Z axis stabilization system, synchronous moving with high accuracy. You can print more higher print without worry.
2. [4.3” Color Touch Screen]: Say goodbye to the traditional manual knob screen. Easy to operate with 4.3” color touch screen, simple and friendly UI with rich features.
3. [Auto Leveling]: Equipped with an auto leveling module which automatically detects 25 points, supports real time adjustment compensation of nozzle height. It won’t be a problem if your print bed is bend.
4. [Filament detection prompt] When the filament detector detects that the filament is broken or runs out, the system automatically pauses printing and prompts for feeding.
5. [Resume Print] One click to resume from the last recorded position when suffering power outages. The printer will ask you whether you want to recover the print or not after you return on the printer.


Product Detail

SPECIFICATIONS

FAQs

download

Features

T300Pro英文版(8)_03

[Large Build Volume]

300*300*400 mm large building volume, available for big ideas.

[4.3” Color Touch Screen]

4.3-inch full color high definition Capacitive touch screen. Friendly and easy to use UI with rich features.

T300Pro英文版(8)_05
3000s por (3)

[Ultra Low Noise]

TMC2208 motor drive system, effective denoising, printing without disturbance.

[Auto Leveling]

 Matrix auto-leveling with high precision distance sensor and dynamic leveling compensation.

T300Pro英文版(8)_07
T300Pro英文版(8)_10

[Accurate and Stable Extrusion]

Enable to pause and change filaments with different colors in mid-print so as to print multi-color models.

[Filament Run-Out Detection]

Sensitive real-time filament run-out detecting system. Auto pause printing when filament runs out.

1
2

[Power Outage Recovery]

Power outage protection and printing recovery. One-key continue printing with no break.

[Print Lighting]

LED auxiliary lighting, observe printing status more clearly at anytime.

56
57

[Multi-Color Indicator]

One glance printing status light using full color LED. Customize your own printer light color.

[Reliable and Safe]

MEAN WELL power supply, high efficiency, reliable and long life. Overall failure protection, safe to use.

3000s por (9)
3000s por (10)

[Easy Print Removing]

Remove print nice and easy with the detachable magnetic print bed. No need of a scraper.

[Optoelectrical Limit Switch]

Using optoelectrical limit switch for positioning. High sensitivity, reliable and durable.

4

  • Previous:
  • Next:

  • Technology FDM/FFF
    Build Volume 300*300*400mm
    Printing Precision 0.1mm
    Precision X/Y: 0.05mm, Z: 0.1mm
    Print Speed Up to 150mm/s
    Nozzle Travel Speed Up to 200mm/s
    Supported Materials PLA, ABS, PETG
    Filament Diameter 1.75mm
    Nozzle Diameter 0.4mm
    Nozzle Temperature Up to 260℃
    Heated Bed Temperature Up to 100℃
    Connectivity USB, Micro SD Card
    Display 4.3” Full Color Touch Screen
    Language English / Chinese
    Printing Softwares Cura, Rapetier-Host, Simplify 3D
    Input File Formats STL, OBJ, JPG
    Output File Formats GCODE, GCO
    Support OS Windows / Mac
    Operating Input 100-120 VAC / 220-240 VAC 360W
    Product Weight 22 kg
    Product Dimensions 545*575*645 mm
    Shipping Weight 16.8 kg
    Package Dimensions 630*605*230 mm

    1. What’s the machine’s print size?

    Length/Width/Height:300*300*400mm.



    2. Does this machine support two-color printing?

    It’s a single nozzle structure, so it doesn’t support two-color printing.



    3. What’s the printing accuracy of the machine?

    The standard configuration is a 0.4mm nozzle, which can support an accuracy range of 0.1-0.4mm



    4. Does the machine support to use the 3mm filament?

    Only supports 1.75mm diameter filaments.



    5. Which filaments support to print in the machine?

    It supports printing the PLA, PETG, ABS, TPU and other linear filaments.



    6. Does the machine support to connect to a computer for printing?

    It supports online and offline to print, but it is suggested to print offline that will be better.



    7. If the local voltage only 110V, does it support?

    There are 115V and 230V gears on the power supply for adjustment, DC: 24V



    8. How is the power consumption of the machine?

    The overall rated power of the machine is 350W, and the power consumption is lower.



    9, What’s the highest nozzle temperature?

    250 degrees Celsius.



    10, What is the maximum temperature of the hotbed?

    100 degrees Celsius.



    11. Does the machine have the function of continuous power off?

    Yes, it does.



    12. Does the machine have a material breakage detection function?

    Yes, it does.



    13. Is there a double Z-axis screw of the machine?

    No, it’s a single screw structure.



    15. Are there any requirements for the computer system?

    Currently, it can be used in Windows XP/Vista/7/10/MAC/Linux.



    16, What’s the printing speed of the machine?

    The best printing speed of the machine is 50-60mm/s.

    BestGee T300S Pro User Manual

    Cura 4.6 Tutorial – BestGee T300S – V1.1
