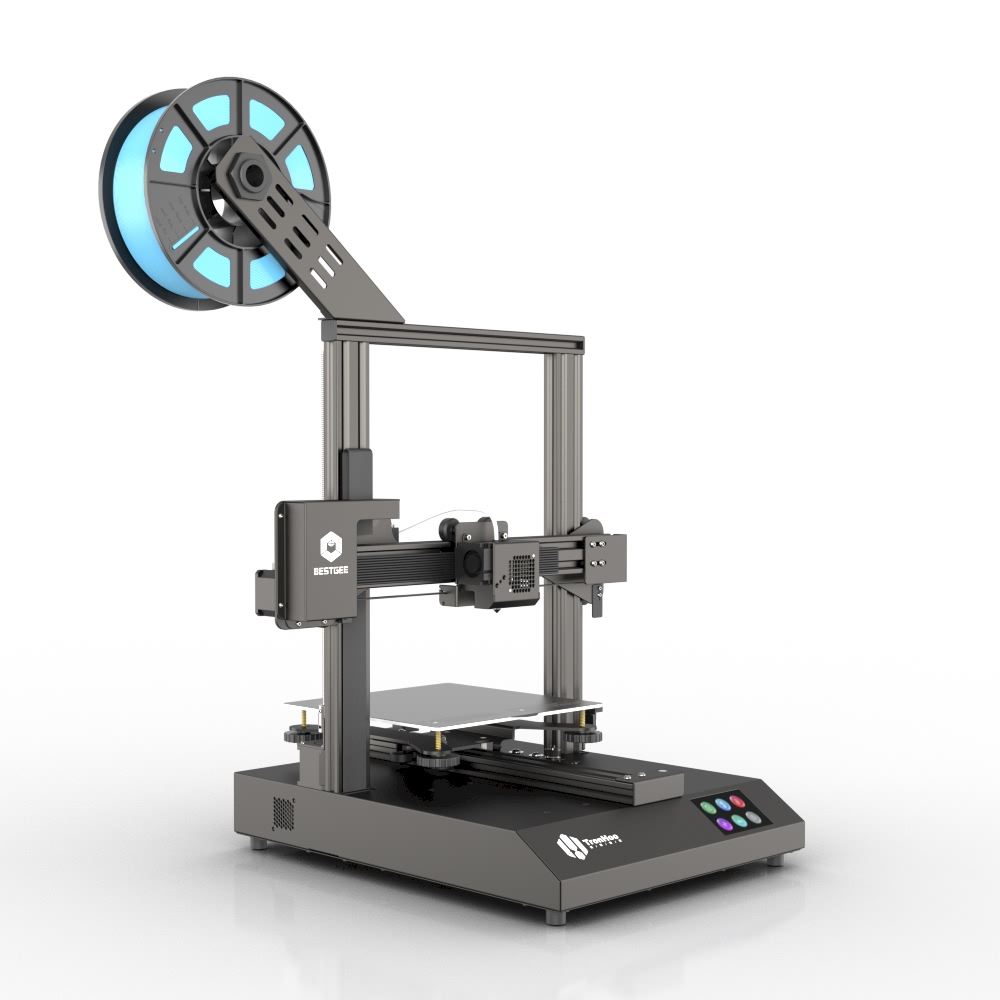

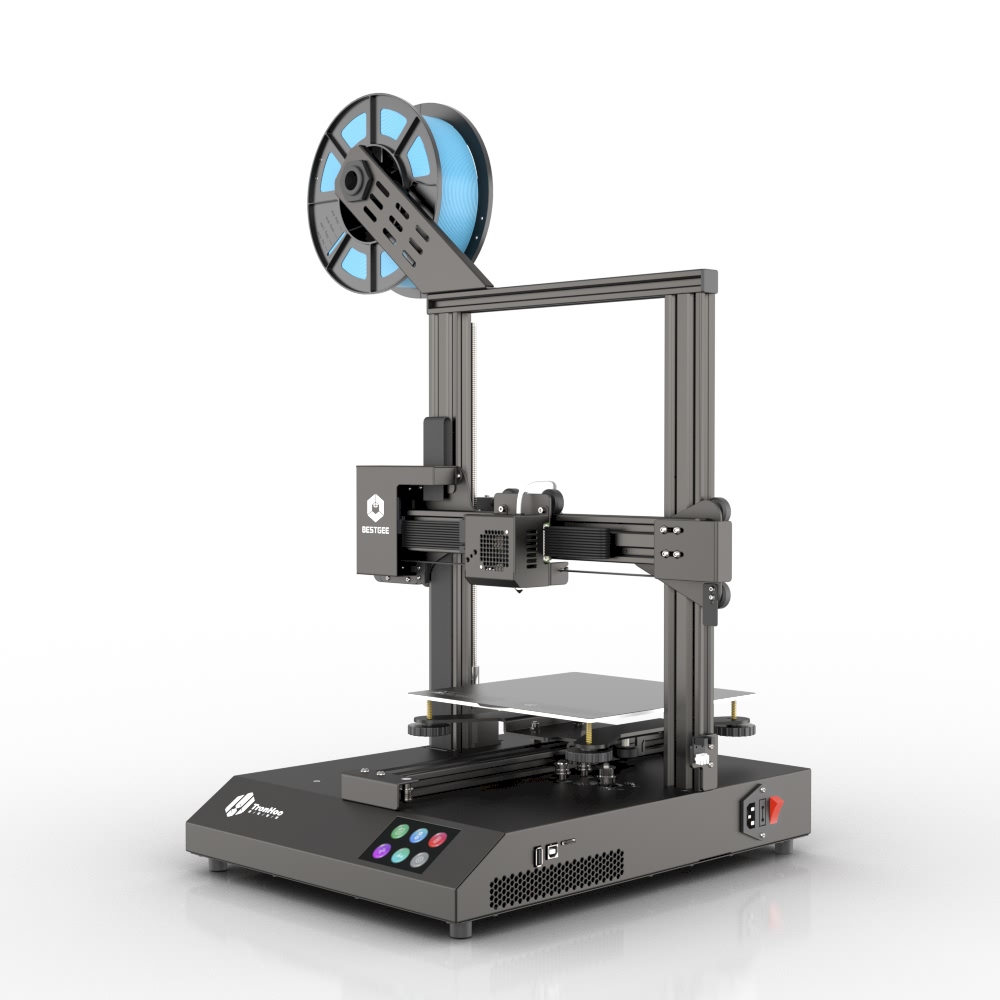

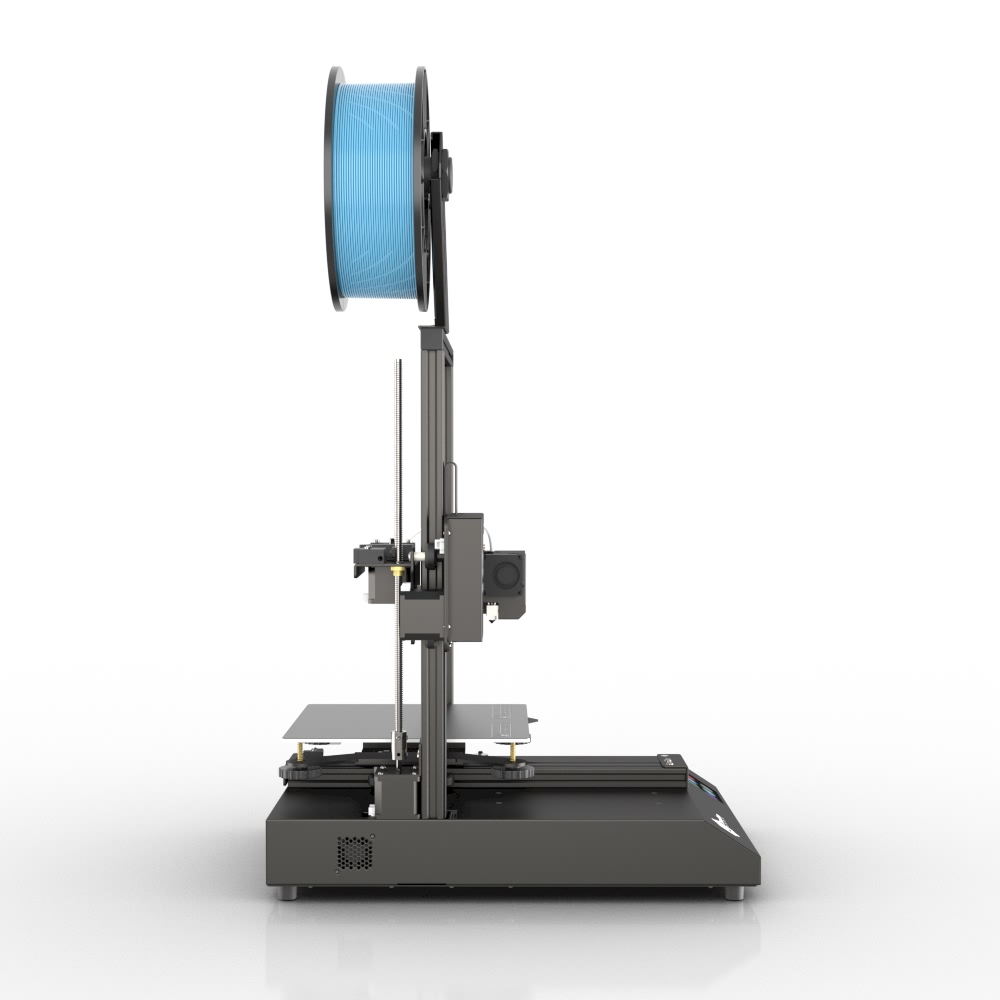

BestGee T220S Lite Desktop 3D Printer

Short Description:

TronHoo BestGee T220S Lite is a desktop FDM/FFF 3D printer that allow users to be more creative. It’s a consumer level 3D printer with great printing performance and accuracy.

Characterized with easy setting up, fast heat-up print bed, metal-frame for reliable operation, accurate and stable filament extrusion, large build volume, filament run-out detection and hassle-free resume from power outage, T220S Lite 3D printer offers creators flexible ways to create and explore the possibility and fun of 3D printing.



√ Fast heat-up Bed

√ Large Build Volume(220*220*250mm)

√ Accurate and Stable Filament Extrusion

√ Filament Run-out Detection

√ Hassle-free Power Outage Resume

√ Metal Frame Modular Structure for Easy Setting Up

√ 3.5’’ Color Touch Screen

√ Easy Print Removing

just need 3 minutes to reach the operating temperature of the heated bed. The printer is shielded by its power supply from voltage spikes and power outages.


Product Detail

SPECIFICATIONS

download

FAQs

3000s por (3)

[Print without Noise]

TMC2208 motor drive system, ensures effective denoising, printing without disturbance.

[3.5'' Color Touch Screen]

 3.5 inch full color high definition touch screen, easy operation

3.5-inch full color high definition touch screen. Friendly and easy to use  (2)
3.5-inch full color high definition touch screen. Friendly and easy to use  (3)

Power Outage Recovery

Power outage protection and printing recovery. One-key continue printing with no break.

[Accurate and Stable Extrusion]

Precise and stable filament extrusion, ensures better print effect and accuracy

.

05-英文T220S强力挤出

[Easy Printing Removing]

Remove print nice and easy with the detachable magnetic print bed. No need of a scraper.

[Quick Heating Bed]

Quick heating to printable temperature in 2 minutes. Print is easy to stick on the heated bed and less warping.

08-英文T220S速热平台
3.5-inch full color high definition touch screen. Friendly and easy to use  (4)

[Easy Leveling]

Axualiary leveling by 5 points automatic positioning. Big thrumb nuts for precise leveling and comfortable operation.


  • Previous:
  • Next:

  • Technology FDM/FFF
    Build Volume 220*220*250mm
    Printing Precision 0.1mm
    Precision X/Y: 0.05mm, Z: 0.1mm
    Print Speed Up to 150mm/s
    Nozzle Travel Speed Up to 200mm/s
    Supported Materials PLA, ABS, PETG, TPU, Flexible Materials
    Filament Diameter 1.75mm
    Nozzle Diameter 0.4mm
    Nozzle Temperature Up to 260℃
    Heated Bed Temperature Up to 100℃
    Connectivity USB, Micro SD Card
    Display 3.5” TFT Full Color Touch Screen
    Language English / Chinese
    Printing Softwares Cura, Rapetier-Host, Simplify 3D
    Input File Formats STL, OBJ, JPG
    Output File Formats GCODE, GCO
    Support OS Windows / Mac
    Operating Input 100-120 VAC / 220-240 VAC 300W
    Product Weight 12.5 kg
    Product Dimensions 445*415*515mm
    Shipping Weight 12.5 kg
    Package Dimensions 510*490*300 mm

    BestGee T220S Lite User Manual Cura 4.6 Tutorial – BestGee T220S – V1.1

    Q1. What’s the machine’s print size?

    A1: Length/Width/Height:220*220*250mm.

    Q2. Does this machine support two-color printing?

    A2: It’s a single nozzle structure, so it doesn’t support two-color printing.

    Q3. What’s the printing accuracy of the machine?

    A3: The standard configuration is a 0.4mm nozzle, which can support an accuracy range of 0.1-0.4mm

    Q4. Does the machine support to use the 3mm filament?

    A4: Only supports 1.75mm diameter filaments.

    Q5. Which filaments support to print in the machine?

    A5: It supports printing the PLA, PETG, ABS, TPU and other linear filaments.

    Q6. Does the machine support to connect to a computer for printing?

    A6: It supports online and offline to print, but it is suggested to print offline that will be better.

    Q7. If the local voltage only 110V, does it support?

    A7: There are 115V and 230V gears on the power supply for adjustment, DC: 24V

    Q8. How is the power consumption of the machine?

    A8: The overall rated power of the machine is 300W, and the power consumption is lower.

    Q9. What’s the highest nozzle temperature?

    A9: 250 degrees Celsius.

    Q10. What is the maximum temperature of the hotbed?

    A10: 100 degrees Celsius.

    Q11. Does the machine have the function of continuous power off?

    A11: Yes, it does.

    Q12. Does the machine have a material breakage detection function?

    A12: Yes, it does.

    Q13. Is there a double Z-axis screw of the machine?

    A13: No, it’s a single screw structure.

    Q14. Are there any requirements for the computer system?

    A14: Currently, it can be used in Windows XP/Vista/7/10/MAC/Linux.

    Q15. What’s the printing speed of the machine?

    A15: The best printing speed of the machine is 50-60mm/s.
